Opis

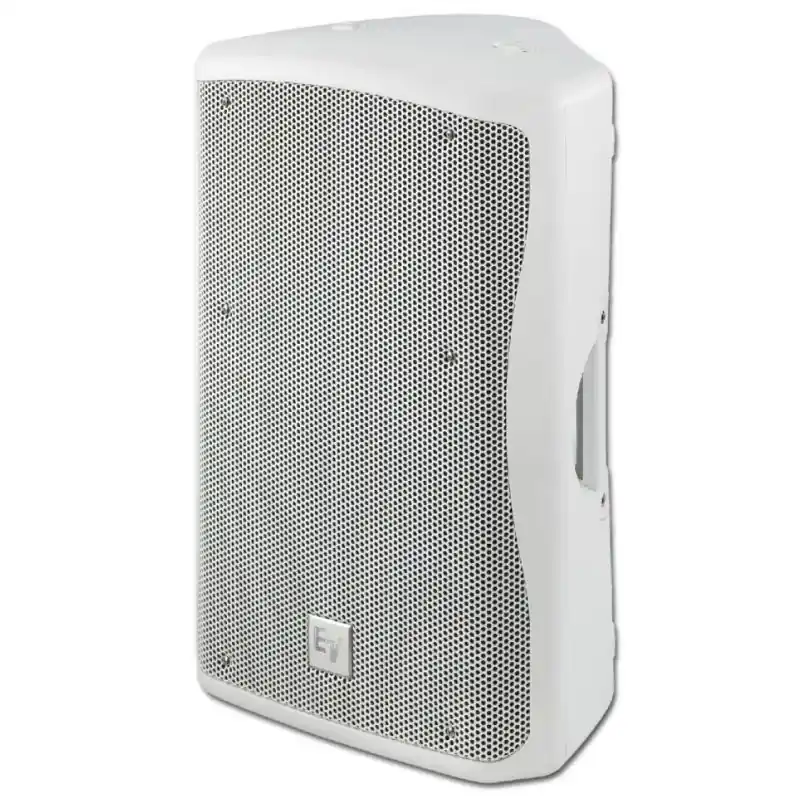

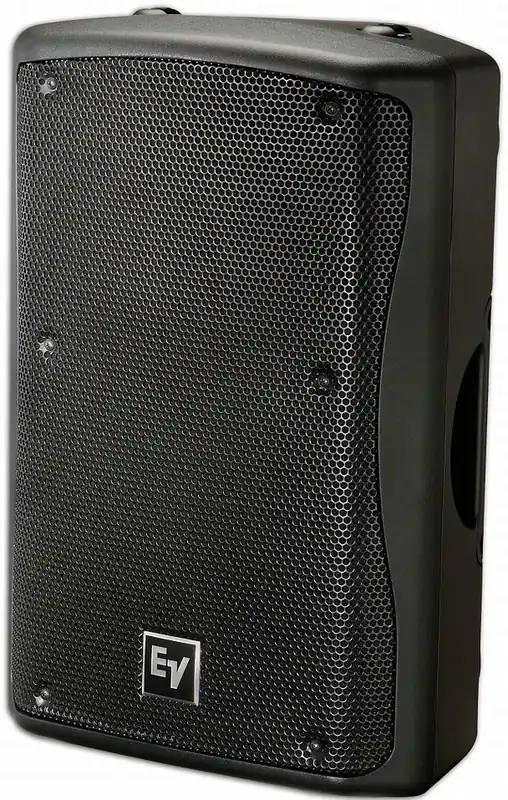

ELECTRO-VOICE Zx3-60B Kolumna pasywna 1×12″, dwudrożna, szeroko pasmowa, 97 dB, 600 W cont., 2400 Peak, 60° x 60°
Komponenty: 2″/12″
Moc nominalna/szczytowa (Full Range): 600/2400 W
Impedancja: 8
Skuteczność: 97 dB
Maks. ciśnienie akustyczne: 131 dB
Pasmo przenoszenia (-3dB): 58 – 15000 Hz
Pasmo przenoszenia (-10dB): 48 – 20000 Hz
Częstotliwość podziału zwrotnicy wewnętrznej: 2000 Hz
Dyspersja (H): 60 °
Dyspersja (V): 60 °
Wymiary (WxSxG): 613x397x362 mm
Waga: 19,8 kg
Opis ze strony producenta
ColorBlack, white
Input Connections2 conductor SJO cable and gland nut
Nominal Impedance8
Speaker TypeFull-range
Frequency Response (-3 dB)58 – 15000 Hz
Frequency Response (-10 dB)48 – 20000 Hz
Internal CrossoverYes
Recommended High-Pass Frequency50 Hz
Sensitivity 1 W/1 m97 dB
Max. SPL/1m (calc)131 dB
Coverage (Nominal -6 dB) H90/60 °
Coverage (Nominal -6 dB) V50/60 °
System Power Handling (Continuous/Program/Peak)600//2400 Watts
LF Transducer12-inch DVX3121A
LF Power Handling500 Watts
HF Power Handling40 Watts
HF Transducer2-inch ND2
Crossover Frequency2000 Hz
Minimum Impedance6.2
Enclosure MaterialHigh Impact Polystyrene
FlyingYes
OutdoorYes
GrillPolyester Powder Coated, 18GA Galvanized Steel
Height613 mm
Width397 mm
Depth362 mm
Weight Net19.8 kg
